To get a demo version of the software for sorting on conveyors and a description of the systems, please contact us with an email request. The RFID sorting system is the most advanced sorting system for conveyors with the ability to track each unit and integrate with any ERP enterprise system.

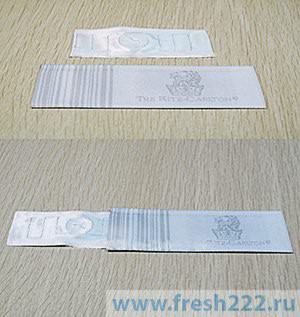

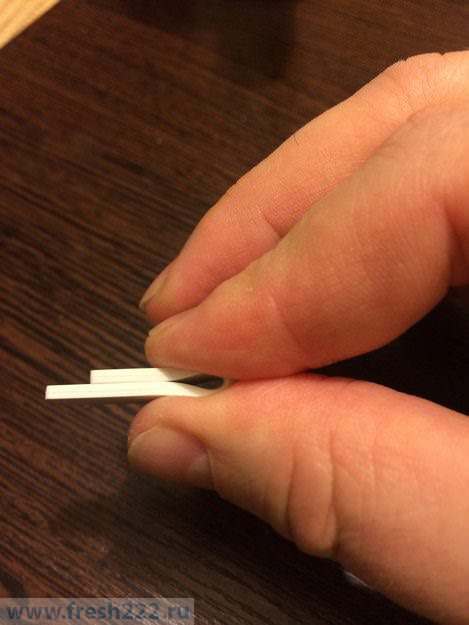

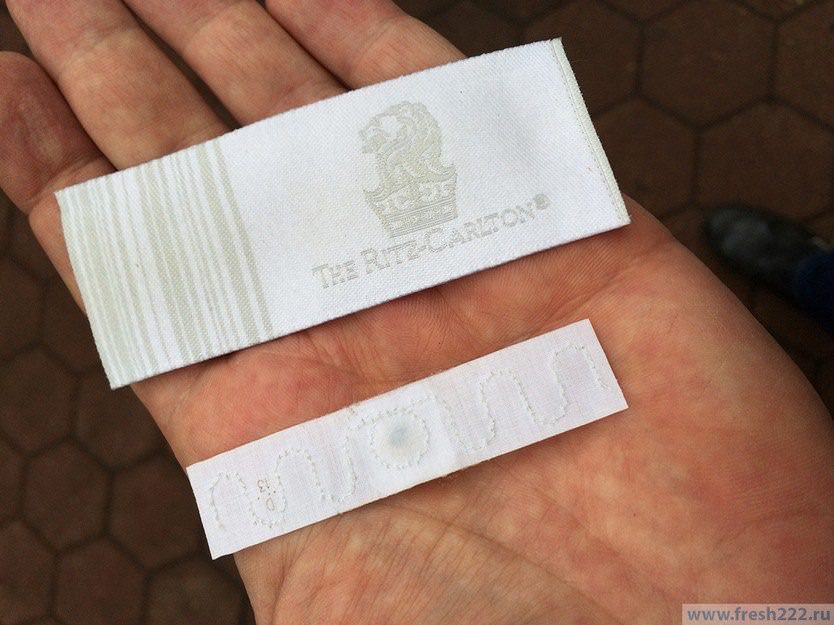

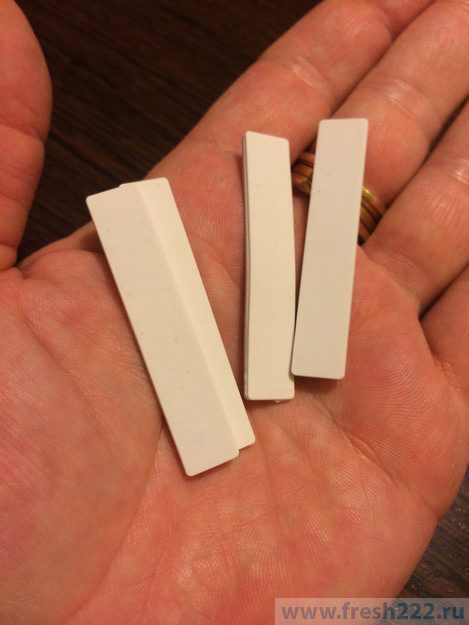

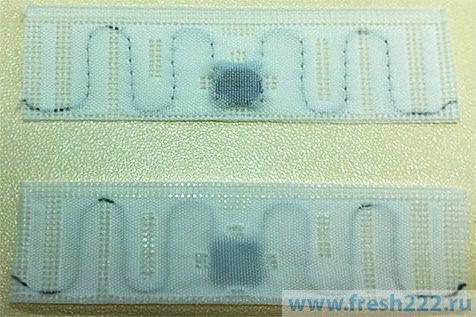

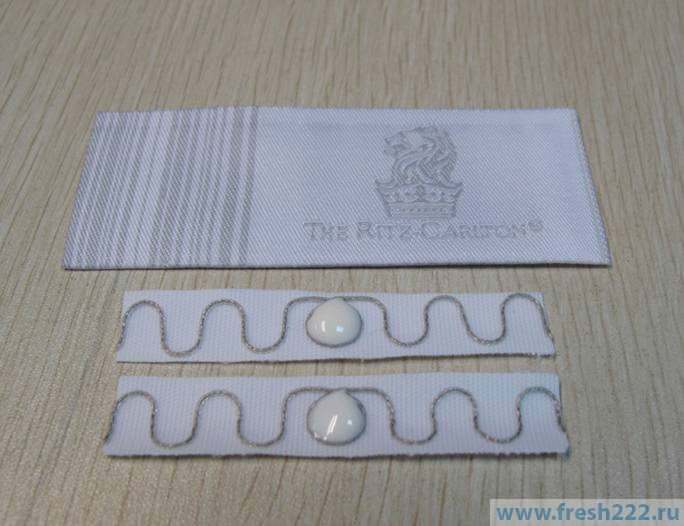

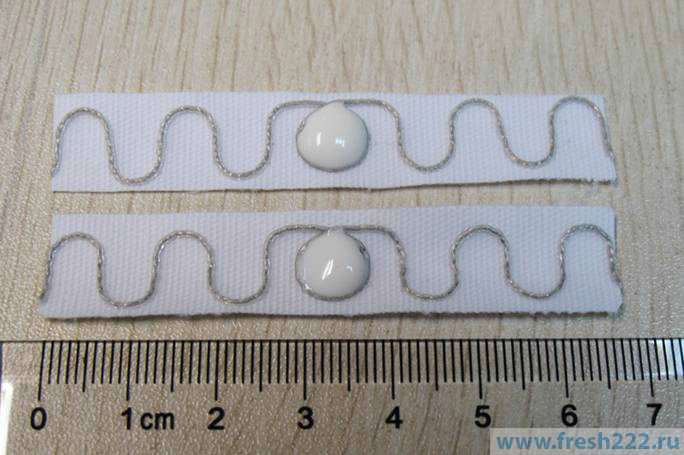

RFID UHF Textile Tag F-22
(Water-Chemical-Thermally-Resistant)
 |
 |
 |
 |
 |
 |
 |
 |
 |

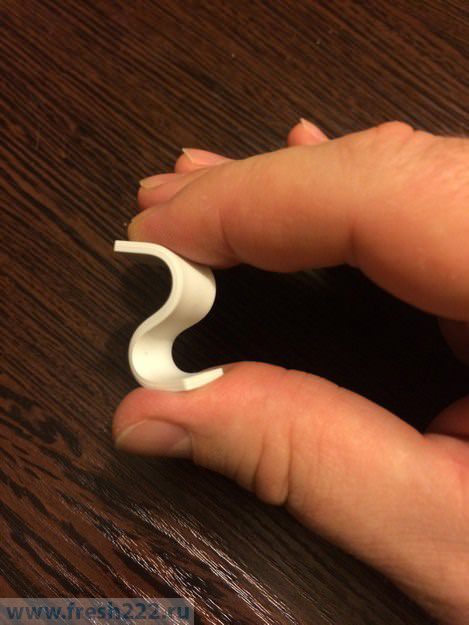

This flexible RFID tag textile / silicone for textiles, laundries and dry cleaners. It’s suitable for use with any RFID UHF readers in retail, hotels, spas, nursing homes, sports clubs, stores, warehouses to work with the programs of accounting and movement control of textile products. It can serve as an effective mean of protecting the brand and contain (write) information of a manufacturer, seller. The use of these tags allows you to monitor and control the movement of textiles, sort by groups, conduct an inventory, count the number of dry cleaners and washes, at the same time protecting the product from theft.
Specification:
- Type: No-touch R/W rewritable
- Operating Frequency: UHF (860 ~ 960 MHz)
- IC Available at 860MHz ~ 960MHz: UHF EPC Gen2 (EPC Class 1 Gen 2)
- Size: 87 x 15 x 0,9 mm (textiles) / 55 x 11 x 1.1 mm (silicone)
- Reading distance: up to 300 cm to 500 cm
- Simultaneous identification of tags: up to 100 pcs. per second
- Validity: up to 200 washes / dry cleanings
- Operating temperature: - 25 ° C to 120 ° C | + 150 ° C, a total of 50 hours | + 205 ° C up to 20 seconds.
- Mechanical pressure up to 60 bar
- Storage: - 25 ° C to 90 ° C
- Number of programming cycles at + 25 ° C: 100,000 times
- Duration of data storage + 55 ° C:> 10 years
Competitive advantage:
- Waterproof IP 68
- Simultaneous tag identification up to 50 tags per second
- Reading distance up to 300 cm to 500 cm (depending on environment)
- Data storage + 55 ° C:> 10 years
- 100,000 times of recording and rewriting
- Resistance to high temperature, harsh environmental conditions, aggressive environments
The price: $ 0.45 for 1 piece with the purchase from 10,000 pieces.
«Textile rfid tags» guidance for integrating

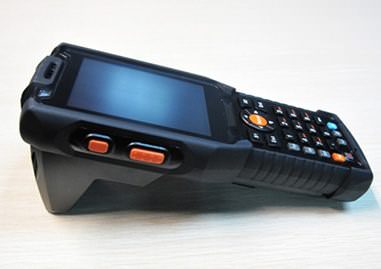

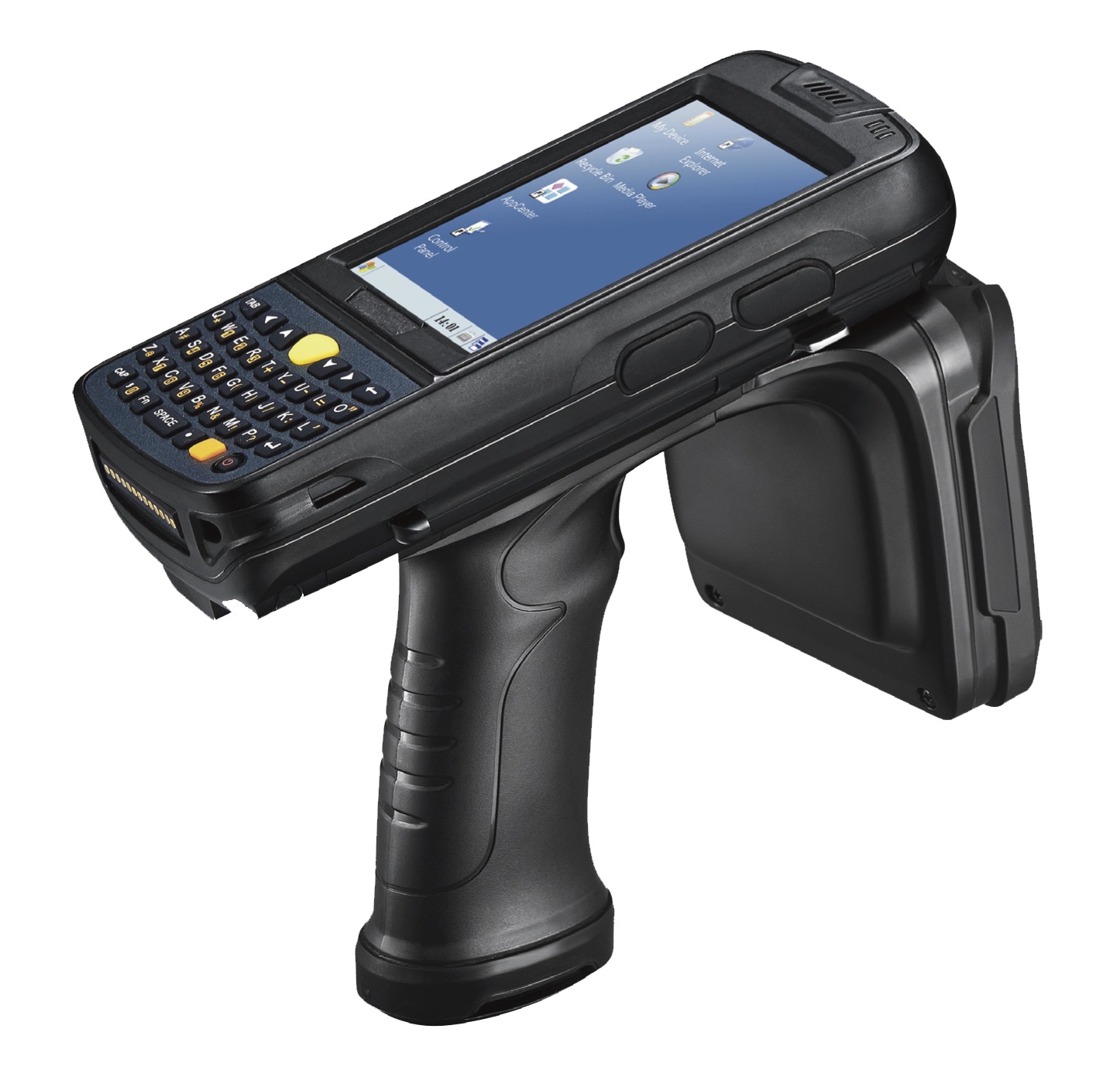

Industrial Handheld Mobile RFID Reader F-880
 |
 |
Handheld mobile RFID Inventory reader F-880 (mobile terminal for data collection)
the price $ 1250 including software that is integrated with EPC
|
RFID portable hand-held reader F-880 |
|
|
Operating frequency |
UHF 860-960 MHz |
|
Protocol |
ISO18000-6C, EPC Class 1 Gen 2, ISO18000-6B |
|
Reading distance |
400-1300 cm |
|
RSSI |
Indicator of received signal |
|
Discrepancy prevention |
Reading upto 400 tags at a time |
|
Antenna polarization |
Circular polarization |
|
SDK |
Free SDK conditions applied to a reader |
|
System possibilities |
|
|
Operation system |
Microsoft® Windows CE® 6.0 или Android OS v2.2 |
|
Processor |
SAMSUNG Cortex-A8(1GHz) |
|
Memory |
|
|
Memory |
256MB/512MB Mobile DDR RAM |
|
Flash-memory |
256MB/512MB Nand Flash ROM |
|
Additional inline memory |
Micro SD 32G (Maximum) |
|
Audio, slots, ports |
|
|
USB ports |
yes |
|
Slots |
1 MicroSD Slot, 1 GSM/GPRS Slot |
|
Camera |
It extends |
|
1D bar-code |
available |
|
2D bar-code |
It extends |
|
Input/output device |
|
|
Input device |
QWERTY keyboard, touch-screen in colour, stilos, start button, upper-case input support |
|
Output device |
3.5” Transmitting LCD, QVGA(240 x 320) or VGA(480 x 640), LED x 2, zoomer (sound buzzer) |
|
Communication functions |
|
|
Wi-Fi |
802.11b/g |
|
GPRS (GSM) |
GSM/GPRS/EDGE: 850/900/1800/1900MHz |
|
3G |
WCDMA / CDMA2000 |
|
Bluetooth |
Bluetooth 2.1 + EDR class 2 |
|
GPS |
integrated |
|
Features |
|
|
Dimensions |
190 x 75 x 30 mm |
|
Weight |
520 g (with a battery) |
|
Case colour |
Matted black |
|
Energy features |
|
|
Battery |
Rechargeable 3.7V 4000mAh battery (accumulator) |
|
Power supply |
AC Adapter |
|
Use conditions |
|
|
International protection |
IP65 |
|
Operating temperature |
-10°C - 50°C |
|
Storage temperature |
-20°C - 65°C |
|
Charge temperature |
0°C - 40°C |
|
Moisture content |
5% - 95% without a condensation product |

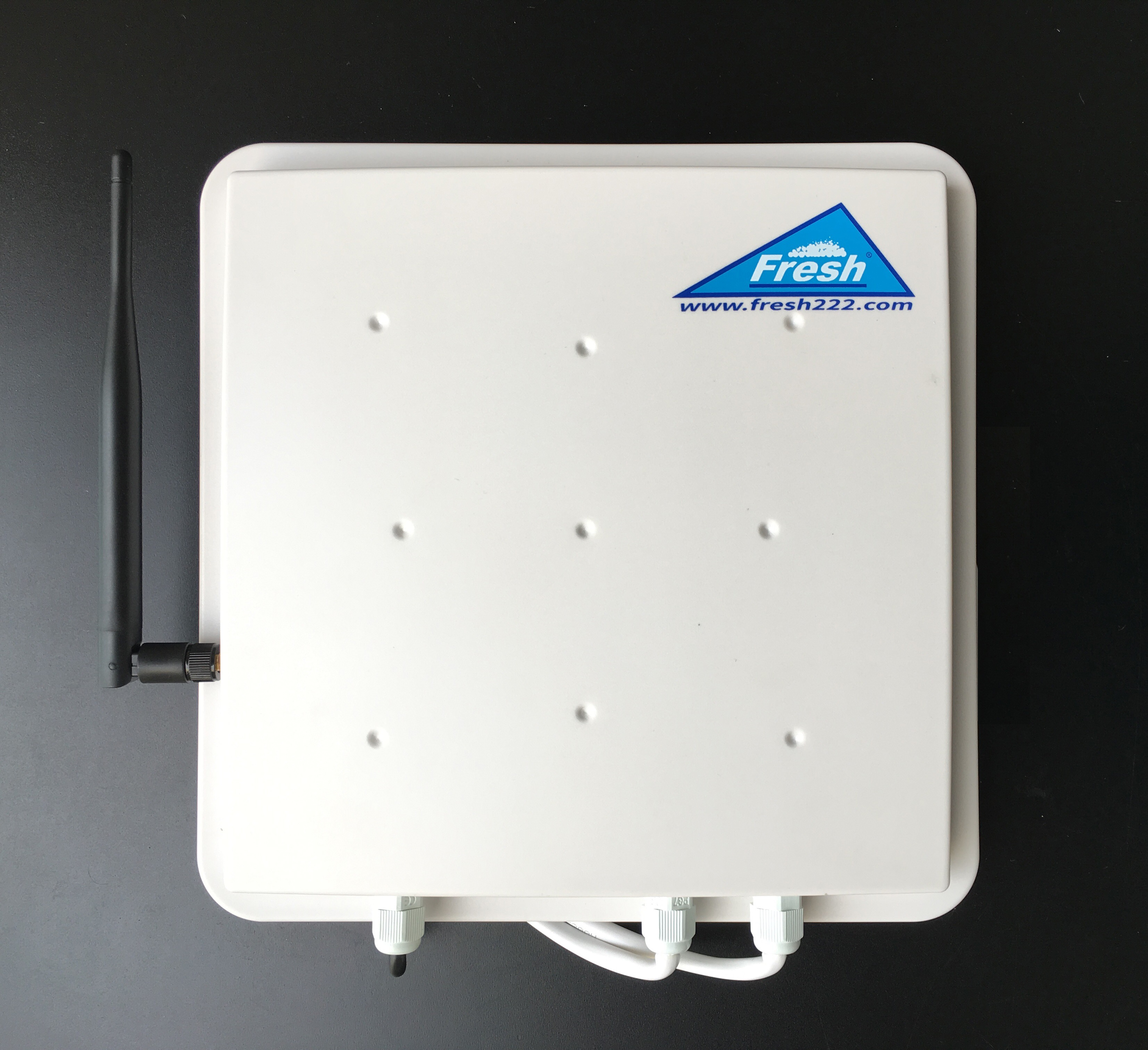

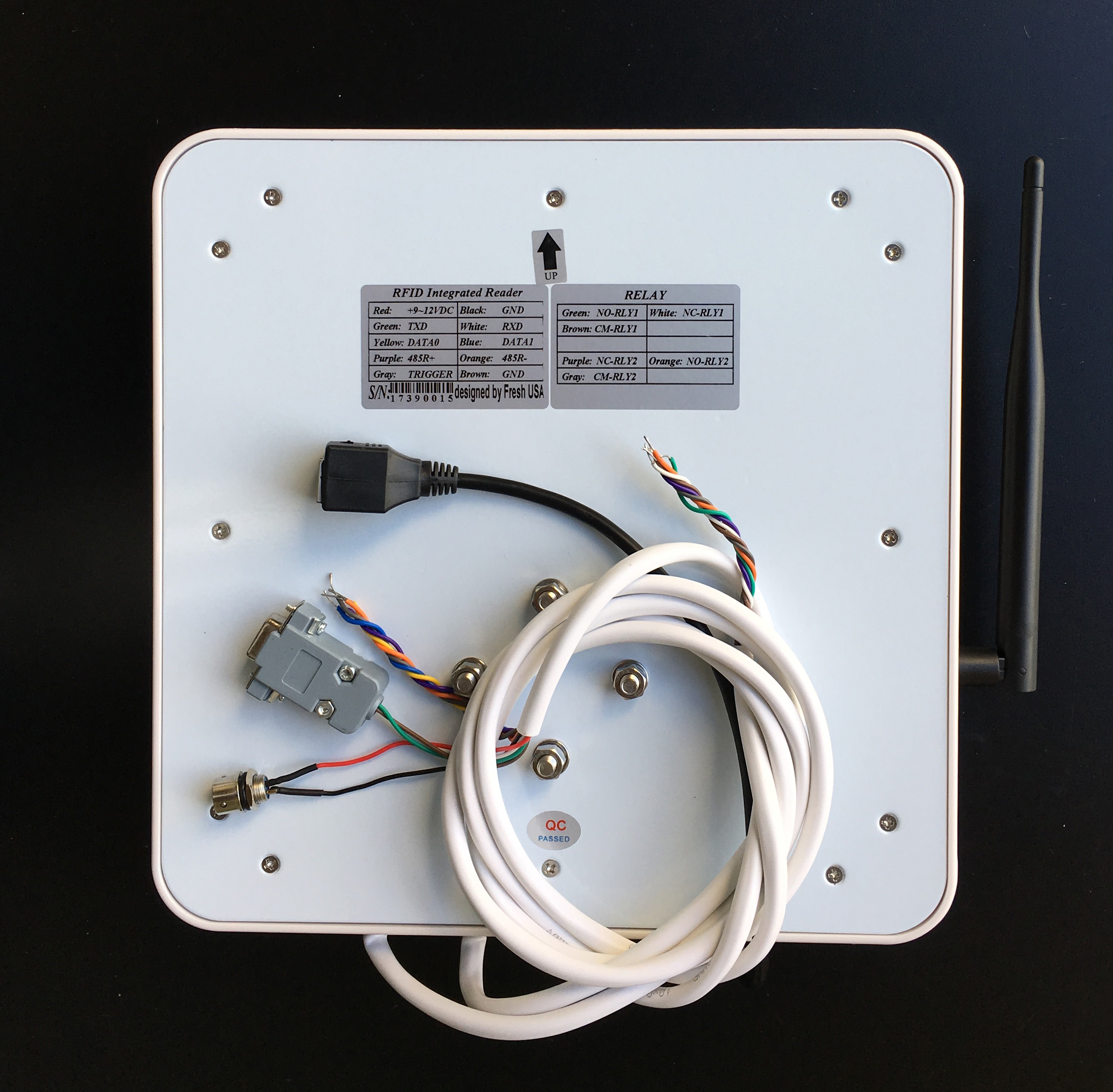

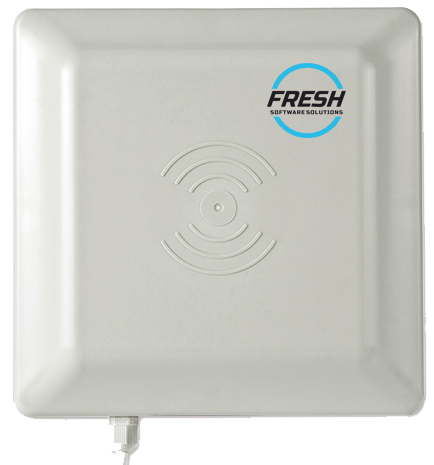

RFID tag reader F-920 (9,8"*9,8"/25*25cm)
|
Features RFID medium range distance tag reader F-920 |
|
|
Supporting protocol |
ISO18000-6C EPC Gen2 / ISO18000-6B |
|
Operating frequency |
ISM 902MHz ~ 928MHz, Or 920MHz ~ 925MHz |
|
Adjustment frequency |
860MHz ~ 960MHz |
|
Operating regime |
Operation with a fixed frequency of transmitting pulses that are set by a software |
|
Transmitting power |
8 dBm ~ 12 dB (It’s set by a software) |
|
Recording/reading performance |
|
|
Reading speed |
Average reading speed of one 64-bit card 64 less thanper 10 ms |
|
Reading distance |
6m – 8m (It depends on a tag and environment) |
|
Speed of recording |
8 bit less thanper 30 ms |
|
Writing distance |
2m – 4m (It depends on a tag and environment) |
|
Lines reading |
Zoomer (signal) |
|
Interface data port |
|
|
USB port / WiFi |
N/A / Yes |
|
RS232 port |
Yes |
|
RS485 port |
Yes |
|
Weigand port |
Weigand26/34 |
|
Trigger port |
Yes |
|
TCP/IP port (RJ45) |
N/A / Yes |
|
Electric parametres |
|
|
Power supply |
DC+9V,4A |
|
Power consumption |
6W |
|
Dimensions and weight |
|
|
Dimensions |
9,8"*9,8" / 250mmх250mmх50mm |
|
Weight |
1500 g |
|
Environment operating factors |
|
|
Operating temperature |
-30°C~70°C |
Fixed RFID tag reader with 4 antenna ports F-6950
|
Name |
Fixed RFID UHF tag reader F-6950 |
Other models |
|
Operation |
3 modes: a proactive mode, answer mode, startup mode |
Usually 1 mode, some models can have 2 modes |
|
Anti-conflict |
Support for labels anti-conflict with excellent effect, the algorithm has no errors |
A large number of errors in the algorithm, the instability of the anti-conflict effect |
|
Label data storage |
Integrated storage system of label data includes port code for the antennas, time, data labels content, etc. |
Usually without a storage, it may contain only store data, without other information |
|
Labelloadingdatasystem |
Different systems of loading data: manual, time estimate, choice of a certain time, release, addition, modification |
- |
|
Label process facilities |
Support the reserved area, EPC areas, TID fields, user’s operational areas, it supports complex data masking tape for various fields |
Only to achieve EPC area by a direct operation without data masking. Indirectly to finalize TID field |
|
Real time |
Integrated real-time clock with no data loss when power is off, reading and writing labels has a timestamp. |
- |
|
|
Full labels EAC operation, support the relay link. |
- |
|
Privacy |
Label privacy function is fully supported |
- |
|
High speed of data operation |
Support for such high-speed data operations as mass flow erase and mass reading,the speed is four times higher. |
- |
|
Functional configuration |
Without malfunction and supply fail |
- |

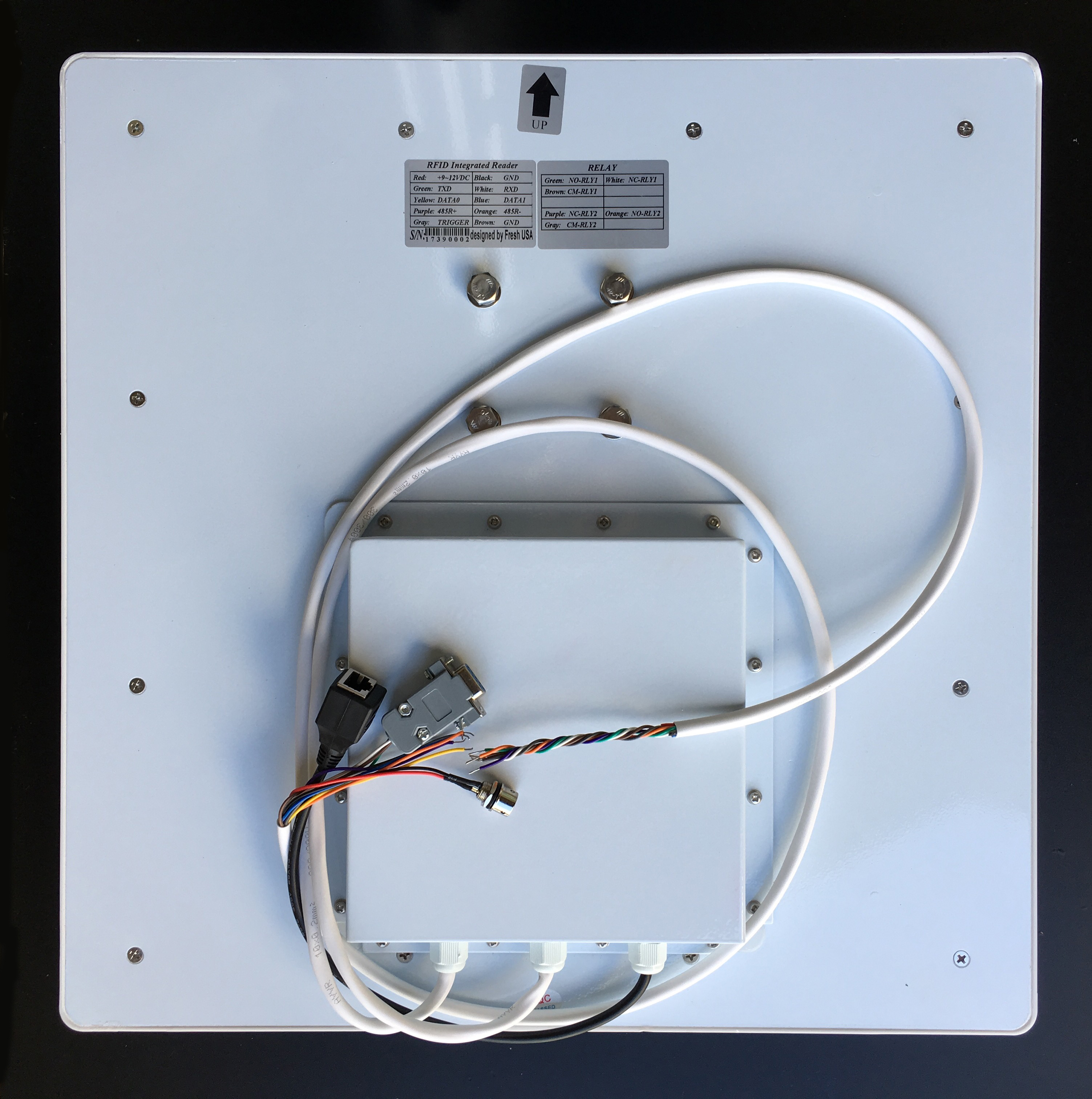

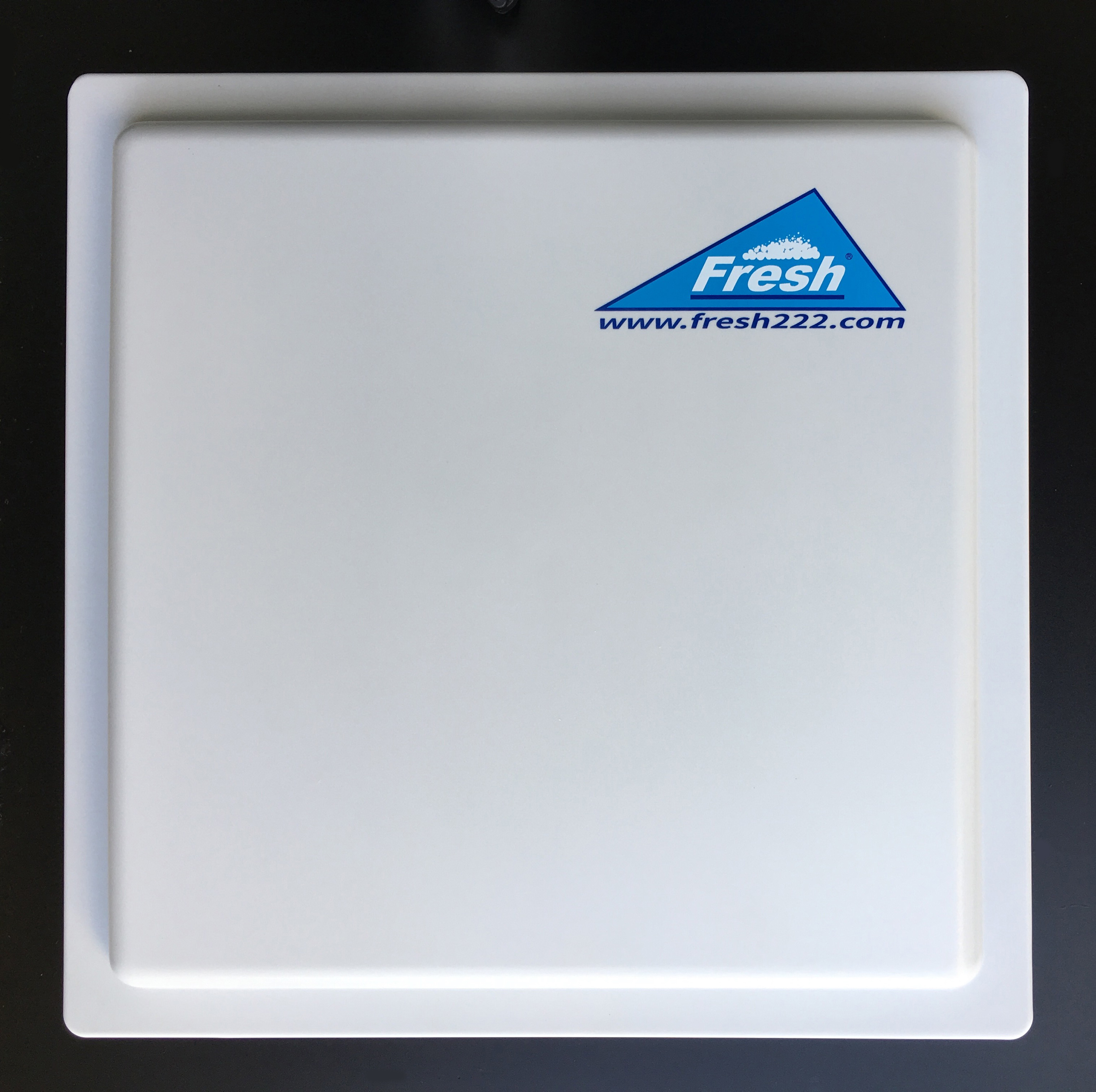

RFID UHF tag reader F-930 (17,7"*17,7"/45*45cm) plus long-range.
|
RFID UHF tag reader F-930 (17,7"*17,7"/45*45cm) plus long-range. Features |
|
|
Supporting protocol |
ISO18000-6CEPC Gen2 / ISO18000-6B |
|
Operating frequency |
ISM 902MHz ~ 928MHz, Or 920MHz ~ 925MHz |
|
Adjustment frequency |
860MHz ~ 960MHz |
|
Operating regime |
Operation with a fixed frequency of transmitting pulses that are set by a software |
|
Transmitting power |
12dBm ~ 30 dBm (set by a software) |
|
Reading/recording performance |
|
|
Reading speed |
Average reading speed of one 64-bit card 64 less thanper 10 ms |
|
Reading distance |
12m -15m (It depends on a tag and environment) |
|
Recording speed |
8 bit less thanper 30 ms |
|
Recording distance |
4m -7m (It depends on a tag and environment) |
|
Lines reading |
Zoomer (signal) |
|
Interface data port |
|
|
USB port / WiFi |
N/A /Yes |
|
RS232 port |
Yes |
|
RS485 port |
Yes |
|
Weigand port |
Weigand26/34 |
|
Trigger port |
Yes |
|
TCP/IP port (RJ45) |
N/A |
|
Electric parametres |
|
|
Power supply |
DC+9V,4A |
|
Power consumption |
6W |
|
Dimensions and weight |
|
|
Dimensions |
17,7"*17,7" / 450mm х 450mm х 60mm |
|
Weight |
3700 g |
|
Environment operating conditions |
|
|
Operating temperature |
-30°C~70°C |
