RFID Vehicle Access Planning: Lane, Credentials & Gate Control

RFID Vehicle Access Planning: Begin with the lane and the decision point

The first question is not “how far can a reader work?” but “where should the vehicle be positively identified?” The useful read zone should sit where an authorized vehicle can be recognized without accidentally reading another lane, a vehicle waiting on a nearby road or a tag carried by someone who is not actually entering. Measure the approach angle, lane width, distance to the gate and the place where a driver naturally slows down.

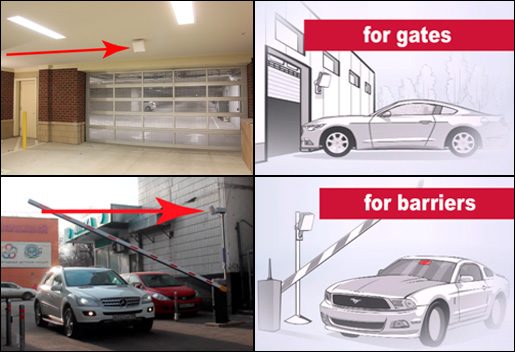

For a narrow single-lane entrance, the simplest plan may be one reader and a direct relay to the gate operator. A wider entrance, two-way traffic or closely spaced entry and exit lanes needs more deliberate placement and testing.

Choose the credential around the vehicle, not the catalog

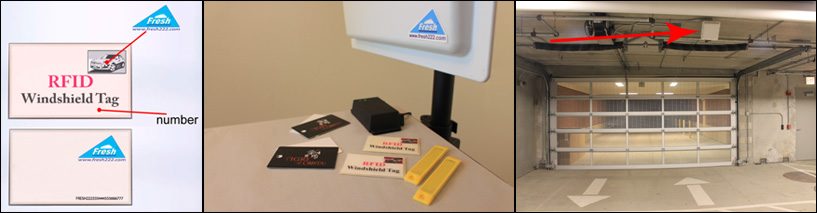

Windshield tags are convenient when vehicles have a consistent glass location and the tag can remain installed. Cards or other credentials can be useful when the same person changes vehicles. Metal bodywork, coated glass, tag orientation and mounting position can all affect performance, so the final location should be confirmed on the actual vehicle types used at the site.

• Decide whether the credential belongs to a person, a vehicle or a company fleet.
• Define how lost, sold or replaced vehicles are handled.
• Separate staff credentials from visitor or temporary access when the workflow requires it.
• Plan how new credentials will be enrolled and who is allowed to issue them.

Connect identification to the gate safely

The access reader should make an authorization decision; the gate operator and its safety devices still control the physical movement of the barrier or gate. Existing loops, photo eyes, safety edges and operator logic should remain part of the gate design. A dry-contact opening command is common, but the exact interface must be checked against the installed gate controller.

Entry and exit should also be treated as separate operating events. Some sites need only automatic entry and free exit. Others need identification in both directions for logs, occupancy workflow or account control.

Standalone first, software when records matter

A standalone vehicle-access setup is often the best starting point when the goal is simply to open the gate for authorized credentials. Software becomes useful when the facility needs names, schedules, blacklists, event history, several gates or a central list of users. Starting small does not prevent expansion later; it simply avoids paying for management functions before the operating process needs them.

Common planning mistakes

• Selecting equipment only by maximum range instead of shaping a controlled read zone.
• Mounting permanently before testing representative vehicles and tag positions.
• Ignoring the second lane, sidewalk or adjacent road where unintended reads can occur.
• Forgetting the visitor, contractor and replacement-vehicle workflow.
• Treating gate safety logic as part of the RFID reader instead of the gate operator.
• Installing a closed system with no plan for later software, additional lanes or reporting.

Information to prepare before requesting a quote

Send the lane width, approximate reader-to-gate distance, entry and exit arrangement, gate-operator model if known, photographs from the vehicle approach, number of authorized vehicles and the preferred credential type. Also explain whether you need only gate opening or a database with names and history. These details are more useful than asking for the longest possible read range.

How to validate the workflow before full rollout

Test normal entry, a vehicle with no authorized credential, a revoked credential, two vehicles arriving close together and a slow or stopped vehicle in the read area. Confirm that the gate operator still relies on its own safety devices and that loss of network or software does not create an undefined operating state. Record the working mounting angle, credential position and reader settings so a future replacement or second lane can be commissioned from a known baseline.

Decisions to make before ordering

• Where should positive identification occur before the gate starts opening?
• Is the credential assigned to a vehicle, a person or a fleet account?
• Does exit need identification or only entry?
• What should happen to visitors, contractors and replacement vehicles?
• Will future software need names, schedules and event history?

Write these answers into the project scope before comparing equipment. They create an acceptance target for the installer and a training reference for the employees who will use the system later. If one of the answers changes, update the scope before adding hardware so the installation continues to solve the operating problem described on this page.
