RFID Parking Access Workflow: From Vehicle Read to Gate Action

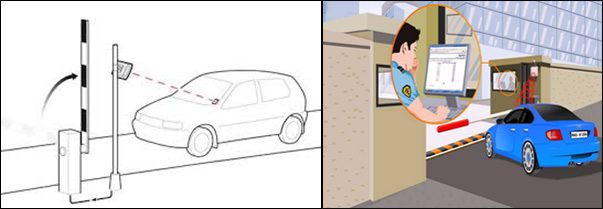

RFID Parking Access Workflow: The basic event has three parts

First, the credential identifies the vehicle or user. Second, the reader or access logic decides whether that credential is authorized. Third, the system sends the appropriate command to the barrier or garage controller. Those functions should be understood separately because a problem can occur at any one of them.

1. Credential enters the intended read area.
2. Reader receives the credential identity.
3. Access rules accept or reject the identity.
4. Authorized output signals the gate controller.
5. Gate safety hardware completes the physical opening and closing cycle.

Read range is a design variable

Longer range can improve convenience, but only when it remains controlled. A reader that sees vehicles too early or reads the neighboring lane can create unexpected openings. Antenna angle, height, vehicle speed, windshield position, nearby metal and road geometry all influence the useful zone.

Testing should use representative vehicles in motion and should include the “wrong” lane or nearby waiting areas to confirm they are not being accepted unintentionally.

Tags and cards solve different operating problems

A fixed windshield tag is convenient for a vehicle that regularly uses the same property. A removable credential may be better when authorization belongs to a person rather than one car. The selection should also consider vehicle replacement, rental cars and whether staff need to issue credentials at a desk. The RFID parking access workflow should also define visitors, revoked credentials and the staff process for changing access rights.

Standalone operation can be enough

For a private gate with a stable list of authorized credentials, a standalone system may provide the required opening logic without a computer. Software adds value when staff need names, schedules, detailed event history, central enrollment or several readers. The system should be sized to the actual management need rather than automatically choosing the most complex version.

Troubleshooting begins with the event sequence

• If the tag is not read, check placement, orientation and the read zone.
• If the tag is read but denied, check enrollment and permissions.
• If authorization is accepted but the gate does not move, check the controller interface and gate logic.
• If the wrong lane opens, reduce or redirect the useful read zone.
• If events are missing from software, check network and software communication separately from local gate operation.

What to measure before installation

Record lane width, reader mounting options, vehicle approach angle, distance from the proposed identification point to the gate, neighboring traffic and available power/network. Include the gate-controller model and typical vehicle types. These details turn a generic parking reader into a properly planned access system.

How to validate the workflow before full rollout

During acceptance testing, deliberately create one failure at each step: use an unregistered credential, temporarily remove the gate-opening connection under controlled conditions and verify the normal authorized case. Confirm the intended behavior after a restart and document the location of power supplies, network connections and controller terminals. The handover should leave the site with enough information to distinguish access logic from mechanical gate service.

Decisions to make before ordering

• What device makes the authorization decision?
• How is the opening command connected to the existing gate operator?
• What is the desired behavior if the management PC is unavailable?
• How are credentials enrolled and disabled?
• Who supports the gate mechanism versus the access system?

Write these answers into the project scope before comparing equipment. They create an acceptance target for the installer and a training reference for the employees who will use the system later. If one of the answers changes, update the scope before adding hardware so the installation continues to solve the operating problem described on this page.

Recommended implementation sequence

Implement the project in a controlled order. First mark the intended vehicle decision point and confirm the existing gate or garage operator interface. Second, temporarily position the reader and test representative vehicles before drilling permanent mounts. Third, enroll a small test credential list and verify allowed, denied and revoked cases. Fourth, document the final read zone and operating settings. Only then add the full user list, software reports or additional lanes. This order separates physical lane problems from database problems and makes troubleshooting much faster.

After the first week of normal operation, review denied entries, operator interventions and any unintended reads. Small changes in reader angle, credential placement or traffic procedure are easier to make early than after several lanes have been copied from an unproven first setup.
